LOMVUM Mini Horizontal and Vertical Cross Line 360 Self-leveling Portable 360 laser level
- Model
- LL-DR2-G2/ LL-DR2-R2/ LL-DR2-GS/ LL-DR2-RS
Review
Description
The difference of the 4 models: LL-DR2-RS/ LL-DR2-GS/ LL-DR2-R2/ LL-DR2-G2

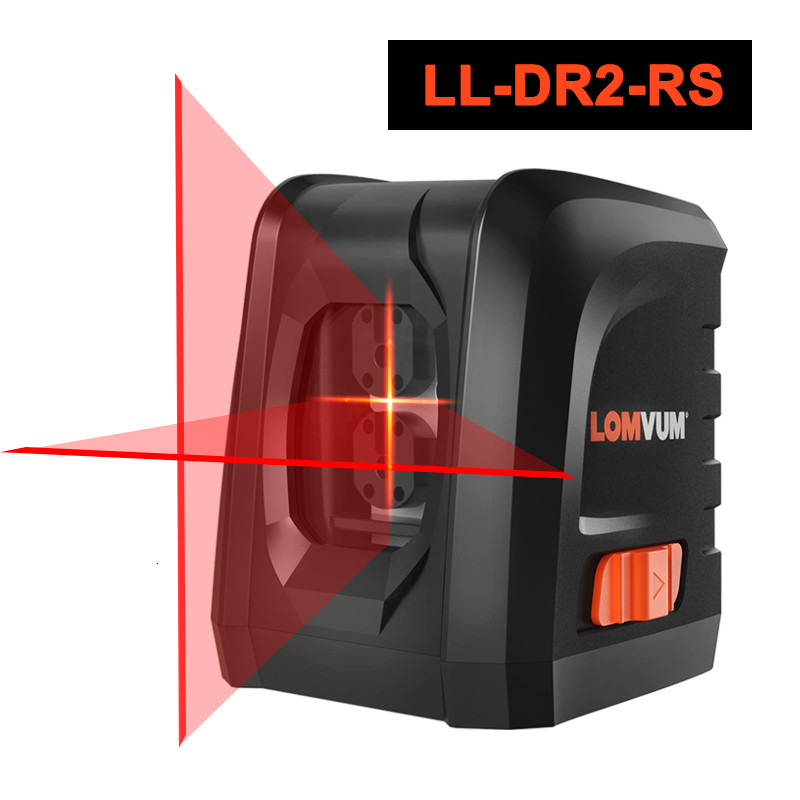

LL-DR2-RS
IP Rating: IP54
Laser: Red Beam
Laser Line: Cross-line only
Laser Class: Class 2
Laser Wavelength: 635nm
Laser Power:7mW
Leveling Accuracy: ±3mm/10m
Leveling/Compensation Range: 3.5°±1°
Working Distance (Line): 10M (32.8 feet)
Anti-fall Distance: 1.2 m(3.9 feet)
Operating Time: Approximately 12Hours
Power Source: 2× AA Batteries (not Included)
Tripod Mounting Size: 1/4’’ (TRIOP NOT INCLUDED)
Operation Temperature Range: 14℉- 122℉(-10℃~50℃)

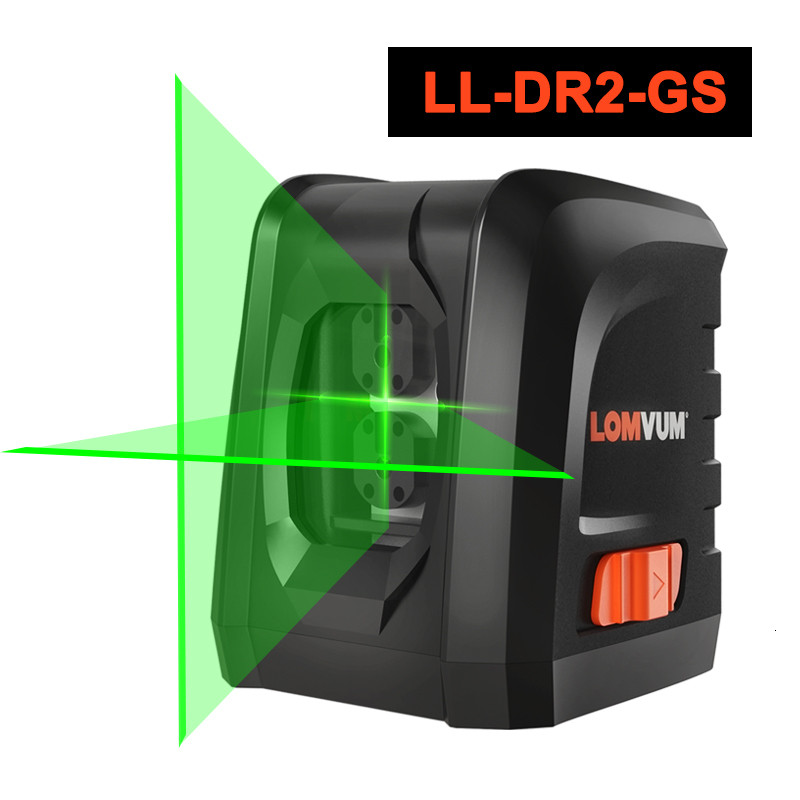

LL-DR2-GS
IP Rating: IP54
Laser: Green Beam
Laser Line: Cross-line only
Laser Class: Class 2
Laser Power:30mW
Laser Wavelength: 515nm
Leveling Accuracy: ±3mm/10m
Leveling/Compensation Range: 3.5°±1°
Working Distance (Line): 30M (98 feet)
Anti-fall Distance: 1.2 m(3.9 feet)
Operating Time: Approximately 12Hours
Power Source: 2× AA Batteries (not Included)
Tripod Mounting Size: 1/4’’ (TRIOP NOT INCLUDED)
Operation Temperature Range: 14℉- 122℉(-10℃~50℃)

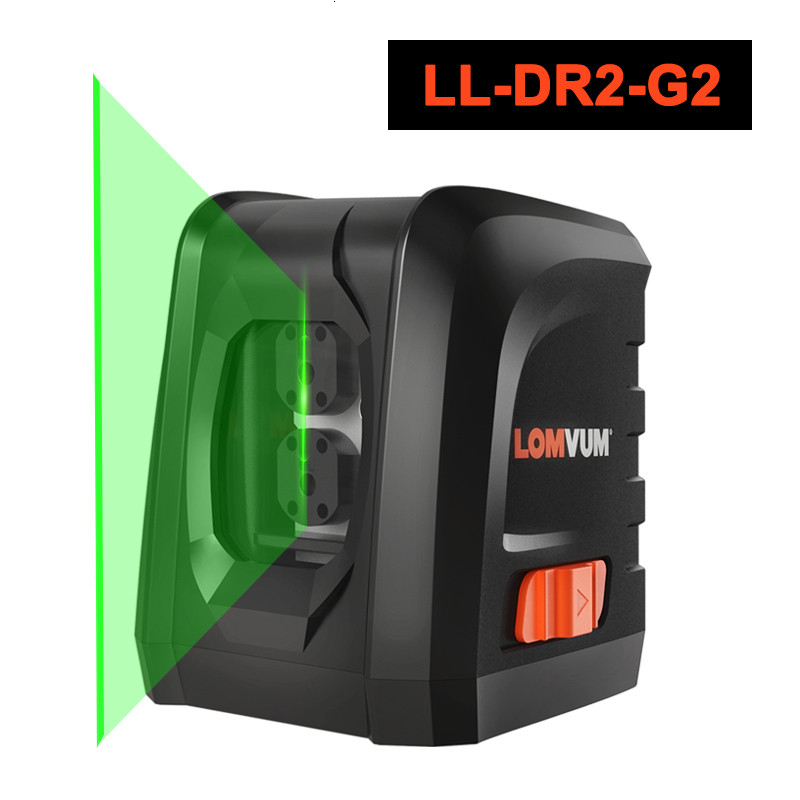

LL-DR2-G2
IP Rating: IP54
Laser: Green Beam

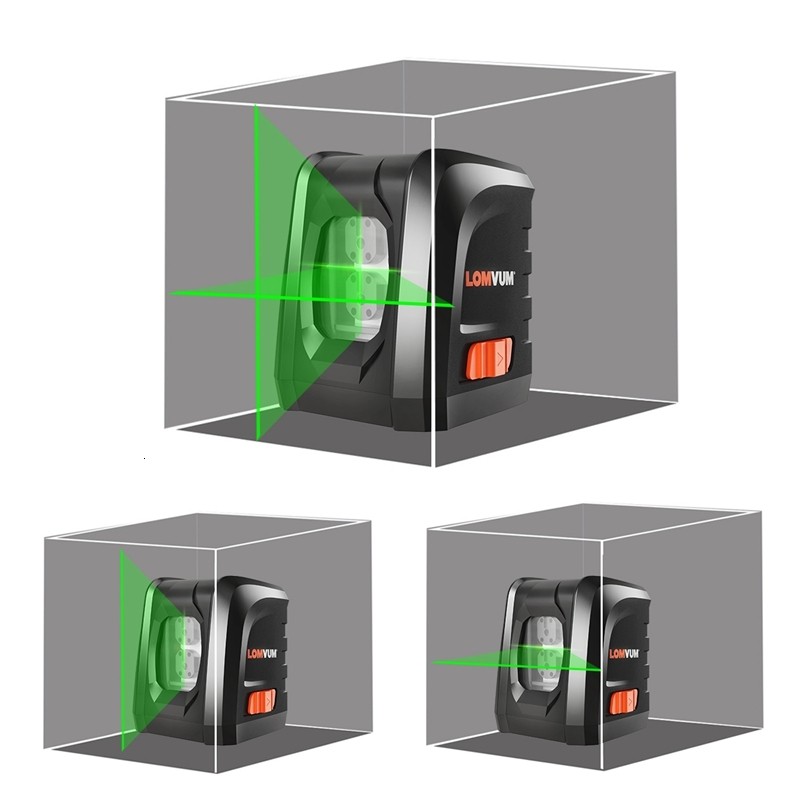

Laser Line: Cross-line, Single Vertical line, Single Horizontal line
Laser Class: Class 2
Laser Power:30mW
Laser Wavelength: 515nm
Leveling Accuracy: ±2mm/10m
Leveling/Compensation Range: 3.5°±1°
Working Distance (Line): 30M (98 feet)
Anti-fall Distance: 1.2 m(3.9 feet)
Operating Time: Approximately 12Hours
Power Source: 2× AA Batteries (not Included)
Tripod Mounting Size: 1/4’’ (TRIOP NOT INCLUDED)
Operation Temperature Range: 14℉- 122℉(-10℃~50℃)
LL-DR2-R2
IP Rating: IP54
Laser: Red Beam
Laser Line: Cross-line, Single Vertical line, Single Horizontal line
Laser Class: Class 2
Laser Wavelength: 635nm
Laser Power:7mW
Leveling Accuracy: ±2mm/10m
Leveling/Compensation Range: 3.5°±1°
Working Distance (Line): 10M (32.8 feet)
Anti-fall Distance: 1.2 m(3.9 feet)
Operating Time: Approximately 12Hours
Power Source: 2× AA Batteries (not Included)
Tripod Mounting Size: 1/4’’ (TRIOP NOT INCLUDED)
Operation Temperature Range: 14℉- 122℉(-10℃~50℃)

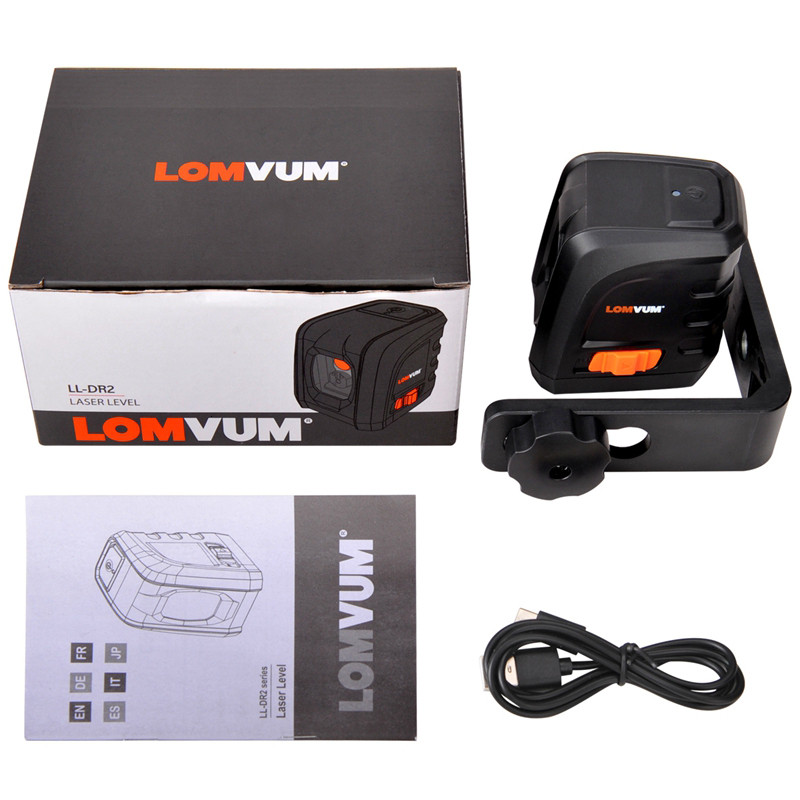

Package Included:
1 x Laser Level 1 x Magnetic Bracket 1 x Manual
