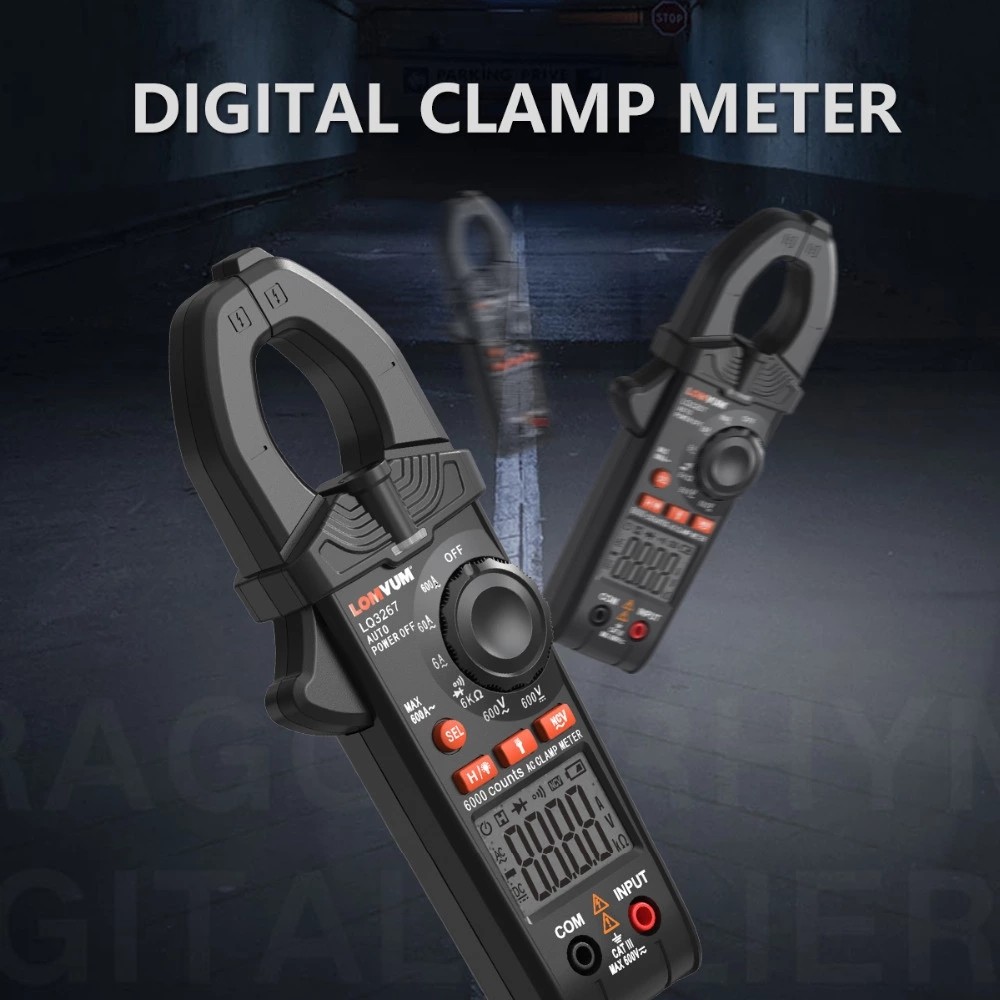

LQ3267/ LQ3269 LOMVUM Digital Clamp Meter Multimeter Mini AC/DC Current Voltage AutoRange Non-Contact 5999 Count 600A Ohm Current Voltage Tester
- Model
- LQ3267/ LQ3269
Product review
Description
Place of Origin: China
Brand Name: LOMVUM
Model Number: LQ3267/LQ3269
Display Type: Digital Only
Measuring Current Range: 6A-10A
Measuring Voltage Range: 6V-600V
Measuring Resistance Range: 600Ω-60MΩ
Measuring Capacitance Range: DC 0-600V AC 0-400V
Measuring Inductance Range: AC 0-200-400A
Operating Temperature: 0-40℃
Dimensions: 185MM*70MM*34MM
Weight: 210G
Frequency (Ture RMS): 60HZ-1000HZ
Safety Level: 600V CAT III
|

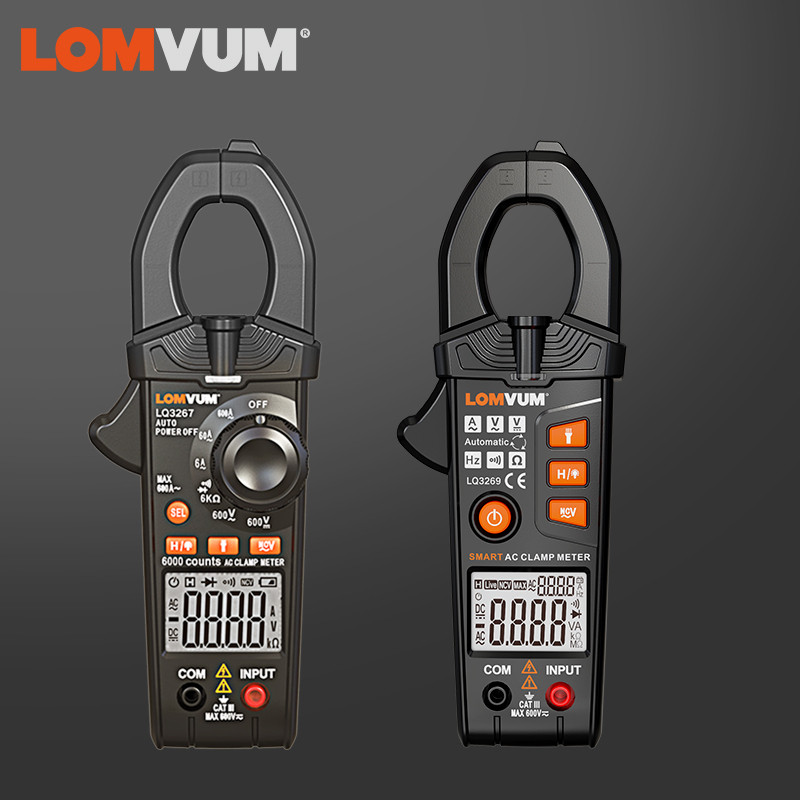

Model |
MANUAL TYPE - LQ3267
|
AUTO TYPE - LQ3269
|
|

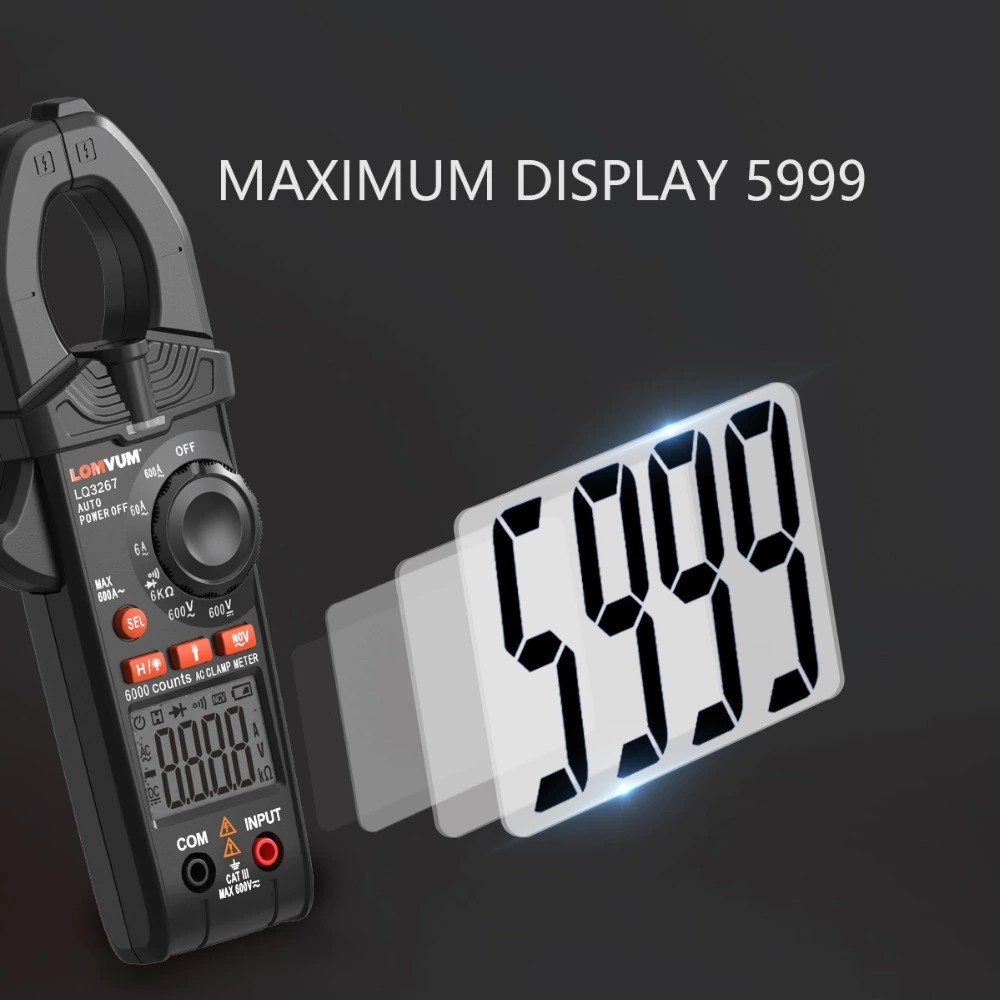

Maximum display value |
6000 Counts |
6000 Counts
|
|
DC/AC Voltage |
6V-600V |
6V-600V
|
|
AC Current Only |
6A-10A |
6A-10A
|

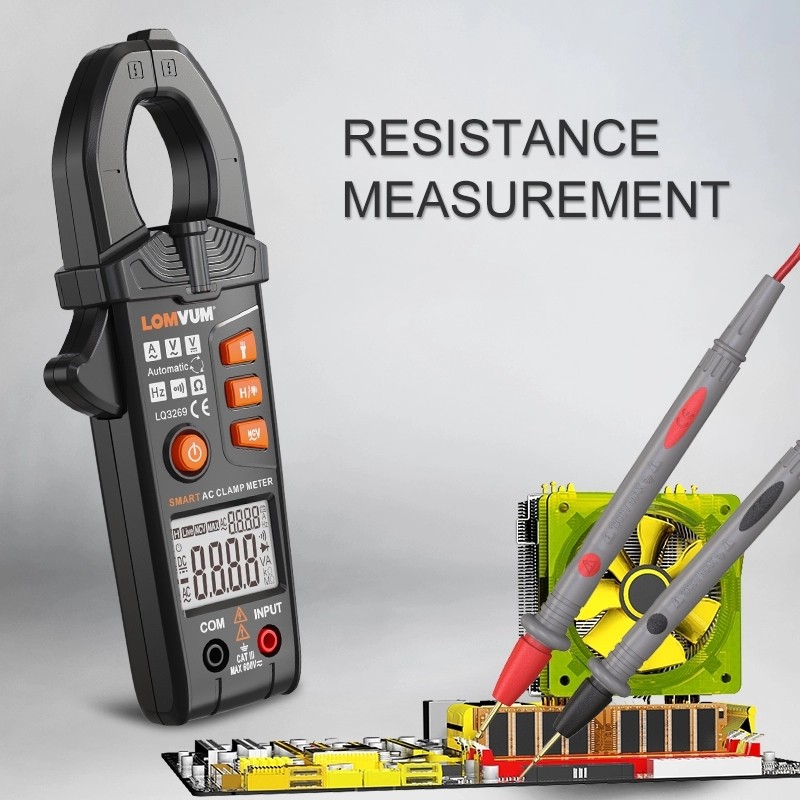

Resistance | 6KΩ | 600Ω-60MΩ |

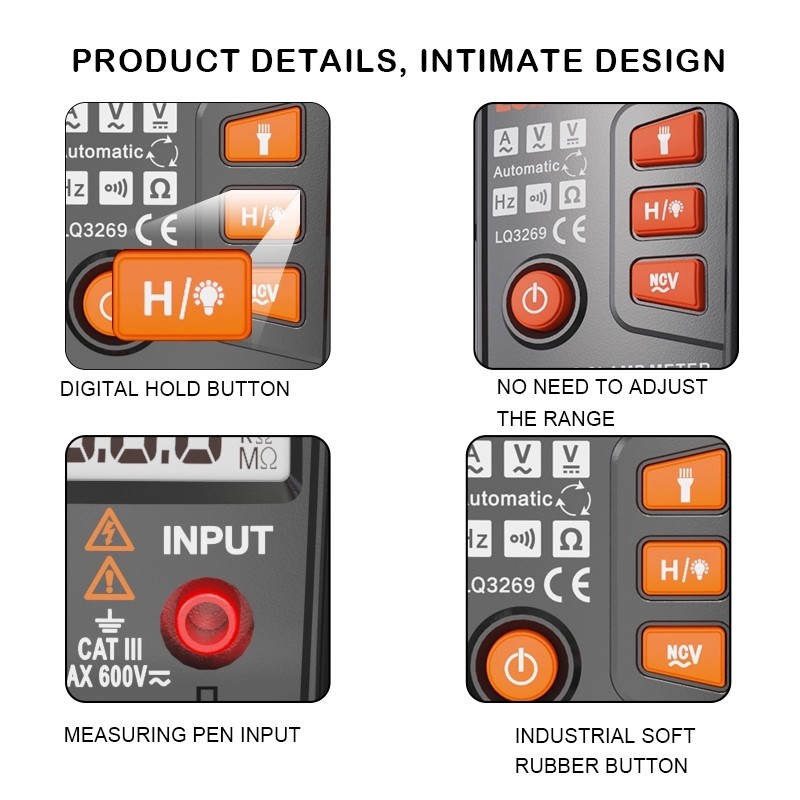

Operation | Manual Range | Auto Range |
Frequency (Ture RMS) | X | 60HZ-1000HZ |
Capacitance | X | X |
Temperature | X | X |
Flashlight | YES | YES |

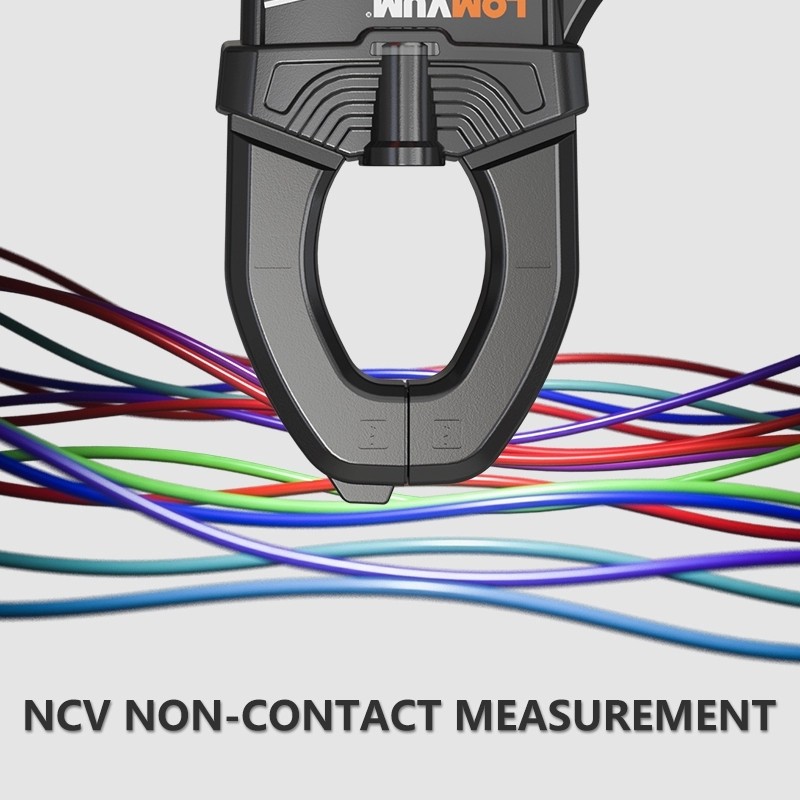

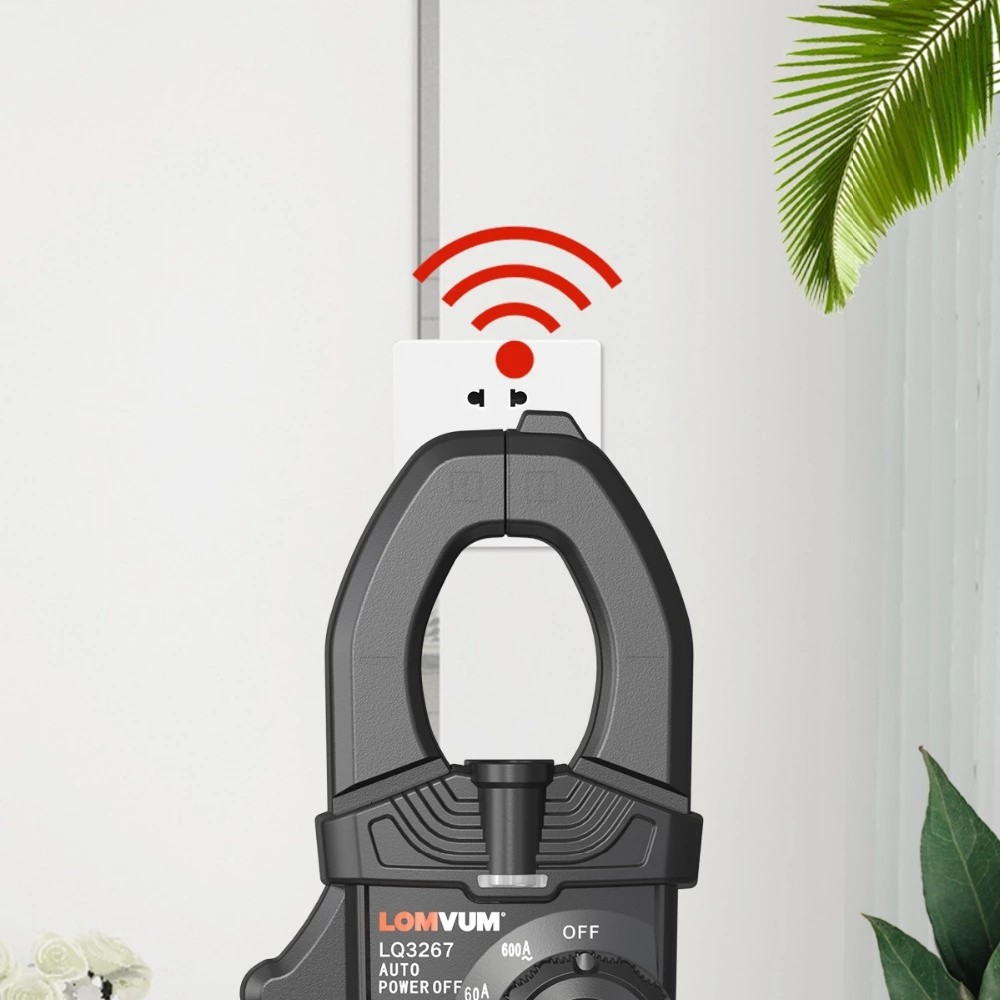

NCV | YES | YES |
Backlight Function | YES | YES |
Diode Test | YES | YES |
On-off Test | YES | YES |
Overload Protection | YES | YES |
Low Battery Indicator | YES | YES |
Clamp Maximum Opening | 25mm | 25mm |
Safety Level | 600V CAT III | 600V CAT III |
Size | 185*70*34mm | 185*70*34mm |
Power Supply | 2pcs*1.5VAAA battery(not included) | 2pcs*1.5VAAA battery(not included) |
