T28B/T28C NCV Digital Portable Digital Multimeter 6000 counts AC/DC Voltage Meter Voltmeter Tester Meter Handheld LED Large Screen
- Model
- T28B/T28C
Review
Description
※Large range measuring - 6000 Counts auto-ranging multimeter, DC Voltage to 1000V, AC Voltage to 750V, AC/DC Current to 10A, Resistance to 60MΩ, Capacitance to 100mF, with type K thermocouple, quickly solve the automotive and household electrical issues.
※Perfect range - 2-3 times/sec for sampling, Built-in support stand for hand free use, Data hold and 2.7 inches large backlit LCD display for visibility in dimly light areas (The backlight & flashlight of the multimeter will operate at the same time)
※NCV sensitive test - If AC voltage detected, the visible LED lights will shine according to the signal density (low, medium, high), the beeper sounds at different frequencies to indicate. If strong signal, red light brights. A general measurement multimeter
※Measure safety- Meet the requirements of 600V CAT IV 1000V CAT III , provide you the HIGHEST SECURITY during working, We commit ourselves to using quality multimeter to improve the quality of life. The problem of electricians is no longer a problem

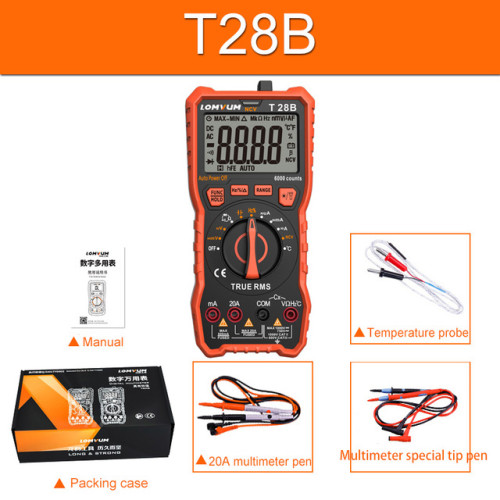

※Package - Lomvum Auto-Ranging Digital Multimeter , NO BATTERY, English User's Manual, Test Leads, K-type thermocouple, 3 years Warranty. Please be assured to purchase Lomvum Auto-Ranging Digital Multimeter
|
T28 B
|
T28 C
|
|
|
Range switching
|
Automatic range
|
Manual range
|
|
DC voltage
|
1000V
|
1000V
|
AC voltage | 750V | 750V |
DC current | 20A | 20A |
AC current | 20A | 20A |
Resistance measurement | 60MΩ | 60MΩ |
Capacitance measurement | 100mF | 100mF |
Temperature measurement | -20℃~1000℃ | -20℃~1000℃ |
Power frequency | yes | yes |
Disconnect | yes | yes |
NCV test | yes | yes |
Diode | yes | yes |
Duty cycle | yes | yes |
Audion | no | yes |
HZ | 9.999MHz | 9.999MHz |
Infrared remote control detection | yes | yes |
Backlight function | yes | yes |
Lighting function | yes | yes |
Automatic shut-down | yes | yes |
Reading hold | yes | yes |
Low voltage display | yes | yes |
Double ceramic fuse | yes | yes |
Full range overload protection | yes | yes |
True RMS | yes | yes |
Maximum display | 5999 | 5999 |
Power(not included) | 1.5 AAA*4pcs | 1.5 AAA*4pcs |
Tile Function
built-in magnet on the back for adsorption on metal
Industrial Rubber Protective Cover
use PVC environmentally friendly materials to effectively prevent slip, anti-fouling and anti-static
use PVC environmentally friendly materials to effectively prevent slip, anti-fouling and anti-static
Highly Accurate, Durable Dial
strong sense of pause, smooth operation
strong sense of pause, smooth operation
High Quality Board
adopt FR-4 double-layer fiberglass board line neatly and firmly welded
adopt FR-4 double-layer fiberglass board line neatly and firmly welded
Watch Pen Slot
there is a pen on the back to accommodate the pen when not measuring.
there is a pen on the back to accommodate the pen when not measuring.
Stroke Jack
the pen jack is smoothly fastened, and the insertion and removal are well printed with an upper limit value.
the pen jack is smoothly fastened, and the insertion and removal are well printed with an upper limit value.
Back With Support Frame
support frame on the back, can be placed obliquely on the table
